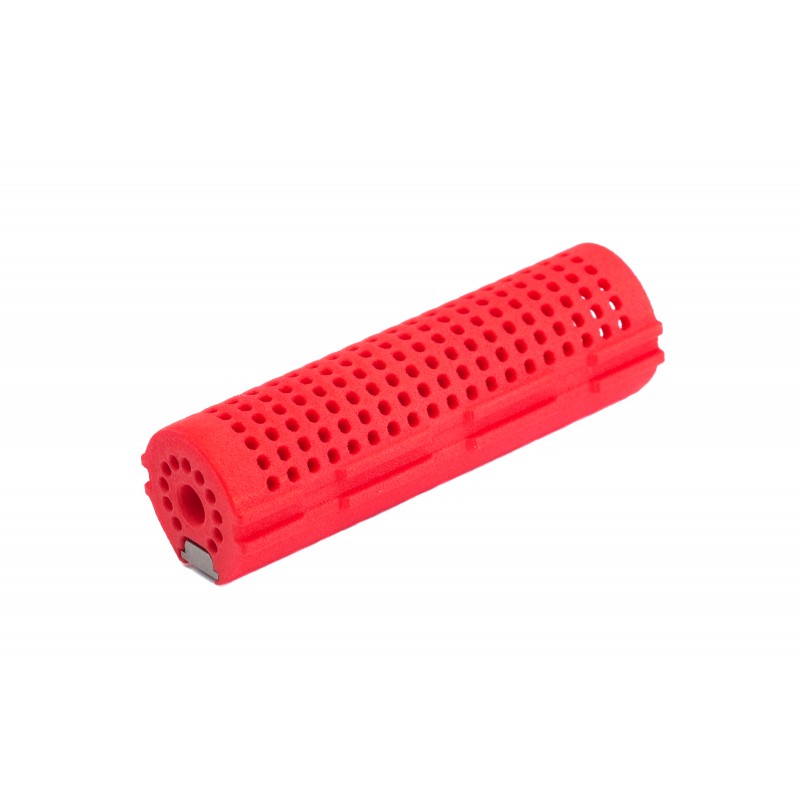

High Speed Piston with Full Metal Teeth
DATA SHEET
| Catalogue code | PST-HS |
| Material | High-Strength Plastic Material |
| Maximum suitable spring | M140 |
| Lightweight design | YES |
| Weight | 14.5 g |
| Compatible with the gearbox | v.2, v.3, v.6, v.7 except special gearboxes (PSG1, SR25, L85, ...) |
MORE INFO
Producer: Airsoft parts
The piston contain of a very durable plastic body and a full metal teeth (14 pcs). The second tooth is remove to decrease the chance of pre-engagement by the sector gear.
182 holes are drilled in the plastic body of the piston, which significantly reduces the total weight. By reducing the weight, the piston's movement speed increases during the shot, thus increasing FPS and reducing the dynamic stress of the gearbox.
The universal design of the piston allows use on low, high and very high cadence weapons. We recommend using springs up to M140.
The piston is designed for all AEG weapons except special gearboxes (PSG1, SR25, L85, ...)
Color: red, black
Advantages:
- Total weight of only 14.5 g
- Increases FPS and reduces stress gearboxes
- Durable plastic body
- Full-metal teeth
- Universal design

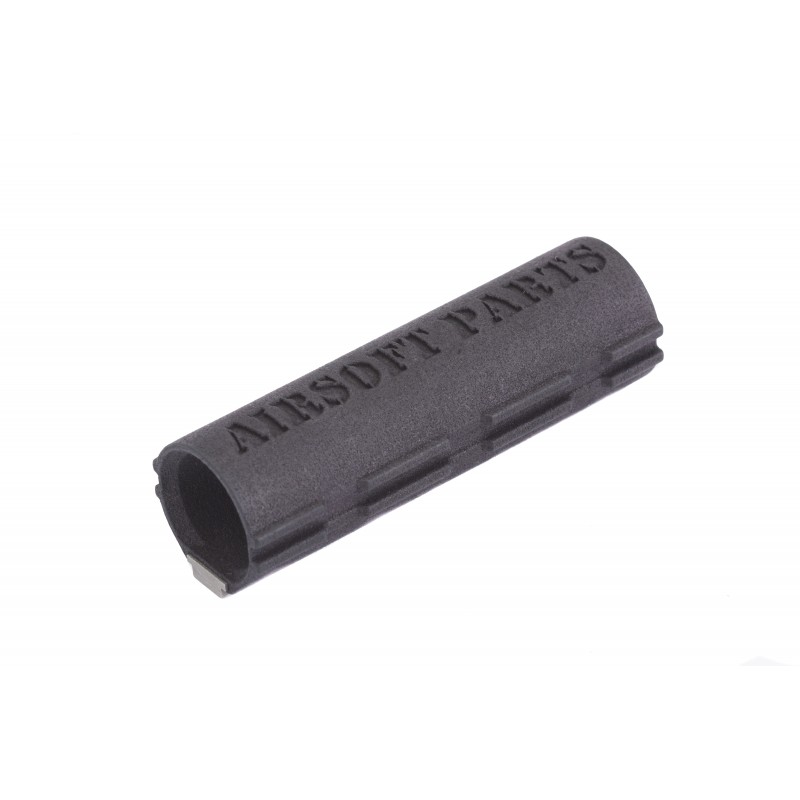

AEG Piston with Full Metal Teeth
DATA SHEET
| Catalogue code | PST |
| Material | High-Strength Plastic Material |
| Maximum suitable spring | M160 |
| Lightweight design | NO |
| Weight | 15,6g |
| Compatible with the gearbox | v.2, v.3, v.6, v.7 except special gearboxes (PSG1, SR25, L85, ...) |
MORE INFO
Producer: Airsoft parts
The piston contain of a very durable plastic body and a full metal teeth (14 pcs). The second tooth is remove to decrease the chance of pre-engagement by the sector gear. Total weight is only 15.6g.
The piston is designed for all AEG weapons except special gearboxes (PSG1, SR25, L85, ...)
Advantages:
- Very low weight
- Durable plastic body
- Full-metal teeth
- Universal design
New generation 1.2:
- Modified holes on the front site
Video:

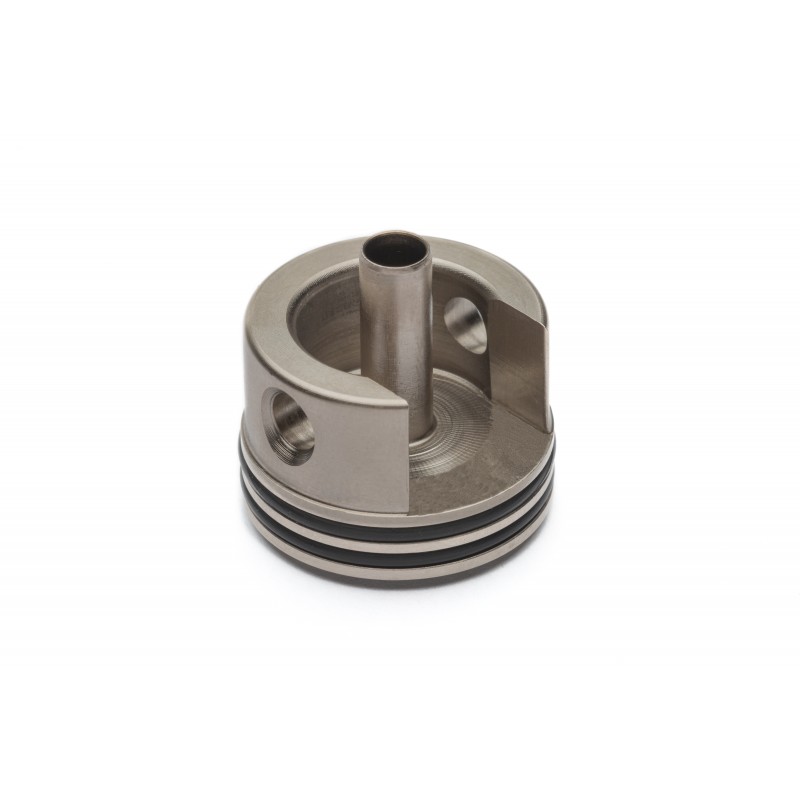

Cylinder head CLASSIC
DATA SHEET
| Catalogue code | HV-CLAS |
| Dimension | Standard |
| Material | EN AW 6012 T6 |
| Maximum suitable spring | M150 |
| Seal | 2 pcs O-ring |
| Surface finishing | Electroless nickel |
| Rubber pad | Molded rubber plate |
| Hardness of rubber pad | 70 ShA |
| Weight | 11,3 g |
| Compatible with the gearbox | v.2, v.3 |
MORE INFO
Producer: Airsoft parts
The cylinder head is made of duralumin EN AW 6012 on CNC machining center.The seal between the cylinder head and the cylinder is ensured by two O-rings. The rubber pad surface is fixed to the duralumin body by mechanical locks and high strength adhesive.
Advantages:
• Inner tapering to facilitate airflow into the nozzle
• Massive construction
• Shaped rubber pad
Piston head - POM
| Catalogue code | HP-POM |
| Dimension | Standard |
| Material | Tecaform (POM) |
| Maximum suitable spring | M150 |
| Seal | 1 pcs O-ring |
| Lightweight design | NO |
| Surface finishing | Without surface finishing |
| Bearings | YES |
| Weight | 8,6 g |
| Compatible with the gearbox | v.2, v.3, v.7 |
MORE INFO
Producer: Airsoft parts
The piston head is made of a structural plastic TECAFORM also known as POM on the CNC machine. Nine holes are drilled on the front side.The air stream flows through these holes during compression thus expanding the O-ring which provides for better sealing of the space between the piston head and the cylinder.
The centre of the piston head is passed through by the lock nut, which spreads the clamping force over a larger area and therefore prevents breakage of the bolt from the body of the piston head.
This piston head also incorporates an axial ball bearing.
Advantages:
- High resistance
- Perfect sealing
- Axial ball bearing for easy spring rotation
- Plastic nut that reduces total weight

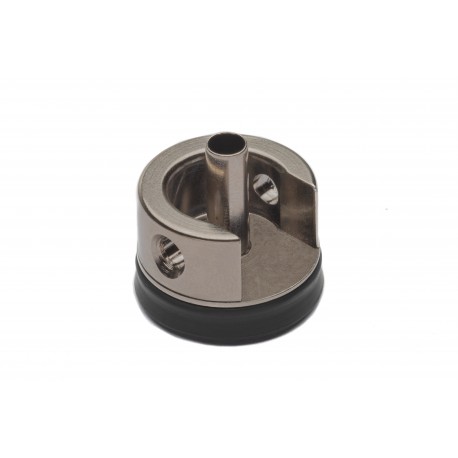

Silent Cylinder Head
DATA SHEET
| Catalogue code | HV-TICH |
| Dimension | Standard |
| Material | EN AW 6012 T6 |
| Maximum suitable spring | M170 |
| Seal | 1 pcs special U-rings |
| Surface finishing | Electroless nickel |
| Rubber pad | Combined with seal |
| Hardness of rubber pad | 80 ShA |
| Weight | 10,1 |
| Compatible with the gearbox | v.2, v.3 |
MORE INFO
Producer: Airsoft parts
The cylinder head is made of duralumin EN AW 6012 on CNC machining centre.This head is a completely innovative design. The most significant difference is the rubber pad and single-piece seal.
Advantages:
- Without leakage between the cylinder head and the cylinder
- Large rubber pad surface suitable for the strong springs
- Seals and impact surface made of a single piece
- Long lifetime
- Low noise level
Craftgear Design - Akku-Pouch
Der Akku Pouch von Craftgear Design.
Passend zu den Wellpower Akkus, die wir hier anbieten.
Eignet sich auch hervorragend als Tool Pouch zum Beispiel für deinen Leatherman.
Montierbar mit Klett bzw. Kabelbinder.
Da wir von Craftgear Design ultra-light Freaks sind gibt es auch eine Version ohne Klettfläche!
Nicht Molle-kompatibel!
Verlängerungs und Adapterkabel
Es werden keine Tamiya Stecker verlötet!
Dean, XT-60 und Bananenstecker liegen bei mir auf. Andere hochwertige Stecker können an SR-Tac geschickt werden und werden dann verlötet. Die Art der Stecker ist zuvor abzuklären, die Kontaktdaten sind im Impressum zu finden.
Low Profile Sling Mount
description for this product
Schrumpfschlauch Set
Das 5mm Set eignet sich hervorragend für das Isolieren von Dean Steckern.
Das 4mm Set eignet sich hervorragend für das Isolieren von Kabelschuhen und zur Verlängerung von Kabeln.
Ein Set aus den ausgewählten Durchmessern besteht aus:
1m rotem Schrumpfschlauch
1m schwarzem Schrumpfschlauch
(S-)AEG Kabelset
Set beinhaltet:
1m rot
1m schwarz
T-Stecker Set (Dean)
1x T-Stecker/Dean-Stecker weibchen
1x T-Stecker/Dean-Stecker männchen
2x angepasste schwarze Schrumpfschläuche
2x angepasste rote Schrumpfschläuche
AUG Quick Release Spring Guide Anpassung
Neuere Airsoft AUG Modelle weisen oft einen Quick Release Spring Guide auf.
Dieser steht meist zu weit aus der Gearbox hinaus, sodass die verbaute Spring Guide Schraube den Spring Guide nicht entsprechend fest stabilisiert.
Der Spring Guide wird auf einer Drehmaschine etwas gekürzt. Ggf. fallen noch andere Bauteile an, um ein echtes Federschnellwechselsystem zu haben.
.jpg "MOE Sling Attachment/Mount (MSA-QD)")
MOE Sling Attachment/Mount (MSA-QD)
Der Meinung von Sierra Romeo nach die praktischste Sling Mount, die es auf dem Markt gibt und noch dazu preiswert.
Entwickelt für die Verwendung an einem Magpul Handguard, eignet sie sich darüber hinaus noch für zahlreiche andere Airsofts und Waffen, solange du dir nicht in die Hosen machst, wenn du dafür ein bisschen zu bohren hast.
Installationsvideos folgen!
.jpg "QD Sling Swivel")
QD Sling Swivel
Megapraktischer QD Sling Swivel und obendrein noch preiswert!
Vickers Combat Application Sling (Padded)
VCAS Padded from Blue Force Gear
Check out my Video on the use of slings on Youtube:
Don't buy non-padded slings, except you exactly know why!
